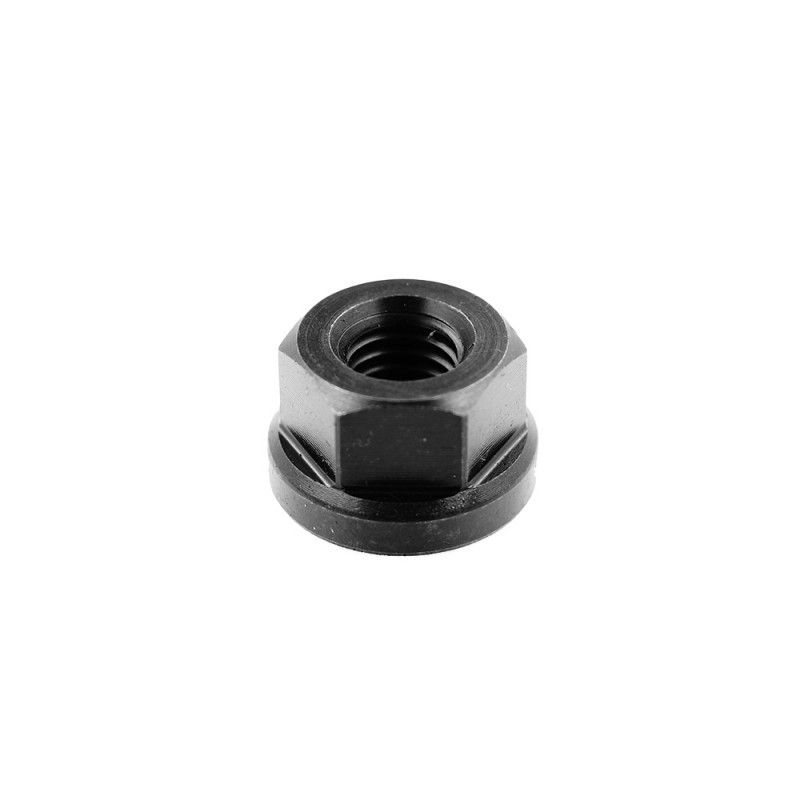

法蘭螺帽 FLANGED NUT銑床加工,台中銑床加工,螺帽工廠,螺絲工廠,法蘭螺帽,壓板
商品型號: FN系列
規格
- 可以配合雙頭螺絲，壓板使用。
- 材質：S45C
- 硬度：HRC30-35°C表面染黑皮膜處理。
 |  |

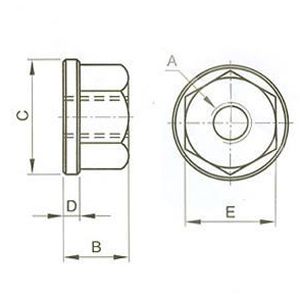

| MODEL | A | B | C | D | E |
| FNM08 | M8*1.25P | 10 | 19 | 2 | 13 |
| FNM10 | M10*1.5P | 14 | 22 | 3 | 17 |
| FNM12 | M12*1.75P | 18 | 28 | 5 | 19 |
| FNM14 | M14*2.0P | 18 | 28 | 5 | 22 |
| FNM16 | M16*2.0P | 22 | 35 | 7 | 26 |
| FNM18 | M18*2.5P | 25 | 40 | 8 | 32 |
| FNM20 | M20*2.5P | 25 | 40 | 8 | 32 |
| FNM22 | M22*2.5P | 30 | 44 | 8 | 32 |
| FNM24 | M24*3.0P | 32 | 50 | 8 | 41 |
| FN03 | 3/8--16 | 14 | 22 | 3 | 17 |
| FN04 | 1/2--12 | 18 | 28 | 5 | 21 |
| FN04-13 | 1/2--13 | 18 | 28 | 5 | 22 |
| FN05 | 5/8--11 | 22 | 35 | 7 | 26 |
| FN06 | 3/4--10 | 25 | 40 | 8 | 32 |
| FN07 | 7/8--9 | 30 | 44 | 8 | 32 |
| FN08 | 1--8 | 32 | 50 | 8 | 41 |
